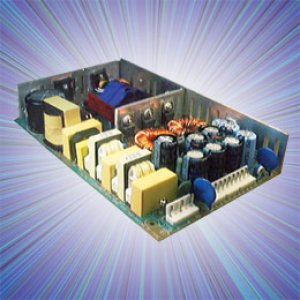

Open frame 200W 'high reliability’ switchmode power supplies with active PFC. These low profile (178 x 108 x 30 (mm) ) integral heat sink, convection-cooled models offer up to 200W of regulated power. Designs have active PFC (0.98min.), built-in EMI filter Class B, limiting AC surge current, short circuit / overload protection. Universal wide range input of 85-264Vac 47-63Hz with single output units of 3.3-48Vdc and multiple output units up to quad are available. See: 200W Open-Frame Rating Table and Open-Frame General Specifications Designed to meet MTBF rating of 150,000+ hours at 50C w/o a fan. All designs are Approved or designed to meet international safety agency approvals (UL, cUL, TUV, CE, CB for ITE #UL60950 or Medical #UL2601-1) and EMC requirements. These power sources are ideal for tele/data communication, video, industrial, medical equipment or any system requiring power. Attractive small size, proven reliability & cost efficient availability makes these power supplies perfect for OEM requirements. Modified & custom design power supplies up to 2000W are also available. Made in USA option available upon request.
